Microchip High-Performance, General Purpose and USB, 32-bit Flash Microcontrollers PIC32MX340F512H-80I/PT
High-Performance 32-bit RISC CPU:
• MIPS32® M4K® 32-bit core with 5-stage pipeline
• 80 MHz maximum frequency
• 1.56 DMIPS/MHz (Dhrystone 2.1) performance at 0 wait state Flash access
• Single-cycle multiply and high-performance divide unit
• MIPS16e® mode for up to 40% smaller code size
• Two sets of 32 core register files (32-bit) to reduce interrupt latency
• Prefetch Cache module to speed execution from Flash
Microcontroller Features:
• Operating temperature range of -40ºC to +105ºC
• Operating voltage range of 2.3V to 3.6V
• 32K to 512K Flash memory (plus an additional 12 KB of boot Flash)
• 8K to 32K SRAM memory
• Pin-compatible with most PIC24/dsPIC® DSC devices
• Multiple power management modes
• Multiple interrupt vectors with individually programmable priority
• Fail-Safe Clock Monitor Mode
• Configurable Watchdog Timer with on-chip Low-Power RC Oscillator for reliable operation
Peripheral Features:
• Atomic SET, CLEAR and INVERT operation on select peripheral registers
• Up to 4-channel hardware DMA with automatic data size detection
• USB 2.0-compliant full-speed device and On-The-Go (OTG) controller
• USB has a dedicated DMA channel
• 3 MHz to 25 MHz crystal oscillator
• Internal 8 MHz and 32 kHz oscillators
• Separate PLLs for CPU and USB clocks
• Two I2C™ modules
• Two UART modules with: - RS-232, RS-485 and LIN support - IrDA® with on-chip hardware encoder and decoder
• Up to two SPI modules
• Parallel Master and Slave Port (PMP/PSP) with 8-bit and 16-bit data and up to 16 address lines
• Hardware Real-Time Clock and Calendar (RTCC)
• Five 16-bit Timers/Counters (two 16-bit pairs combine to create two 32-bit timers)
• Five capture inputs
• Five compare/PWM outputs
• Five external interrupt pins
• High-Speed I/O pins capable of toggling at up to 80 MHz
• High-current sink/source (18 mA/18 mA) on all I/O pins
• Configurable open-drain output on digital I/O pins
Product Attributes:
| Part Status | Active |
| Core Processor | MIPS32® M4K™ |
| Core Size | 32-Bit |
| Speed | 80MHz |
| Connectivity | I²C, IrDA, LIN, PMP, SPI, UART/USART |
| Peripherals | Brown-out Detect/Reset, DMA, POR, PWM, WDT |
| Number of I/O | 53 |
| Program Memory Size | 512KB (512K x 8) |
| Program Memory Type | FLASH |
| EEPROM Size | - |
| RAM Size | 32K x 8 |
| Voltage - Supply (Vcc/Vdd) | 2.3 V ~ 3.6 V |
| Data Converters | A/D 16x10b |
| Oscillator Type | Internal |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Package / Case | 64-TQFP |
| Supplier Device Package | 64-TQFP (10x10) |

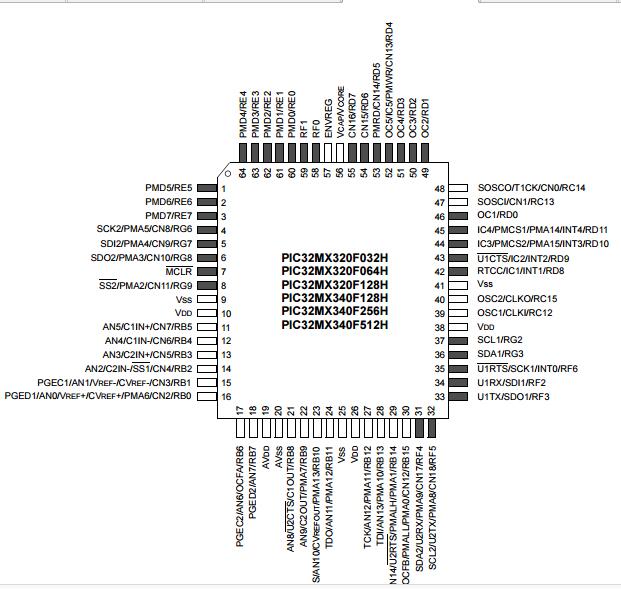

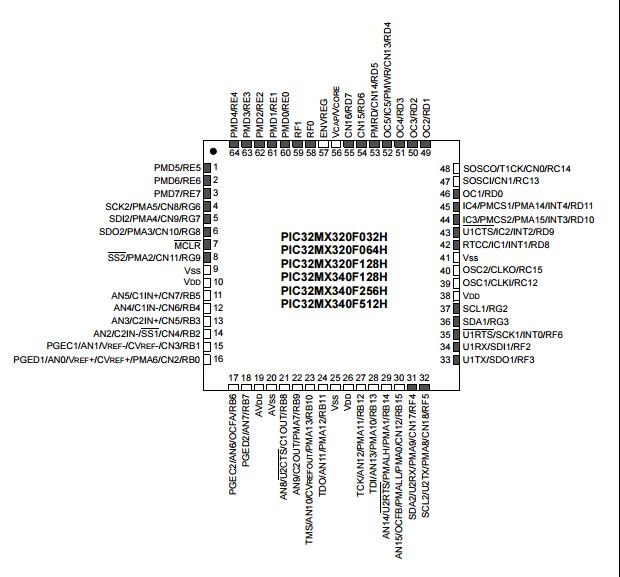

Drawing:

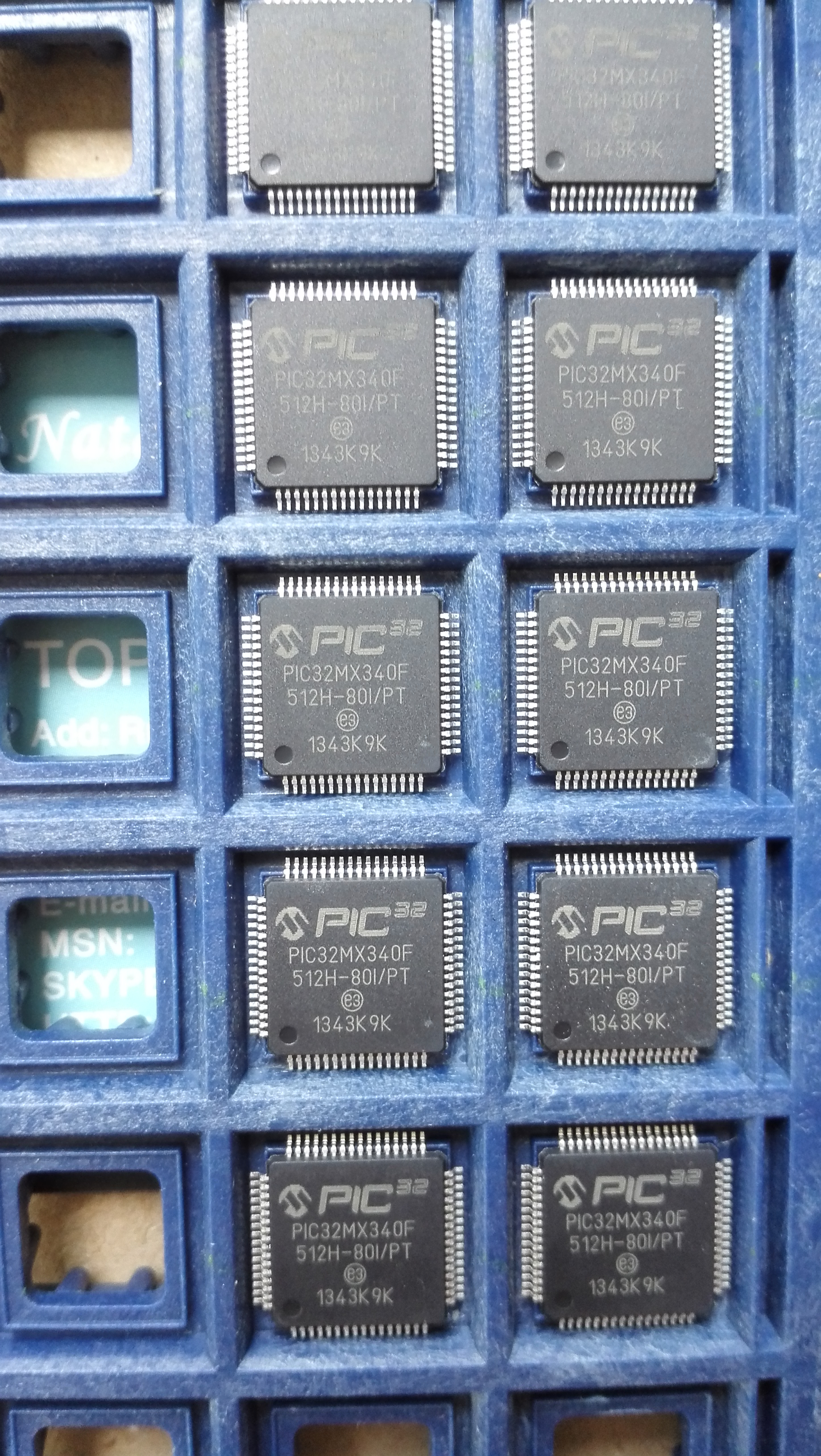

Product show:
