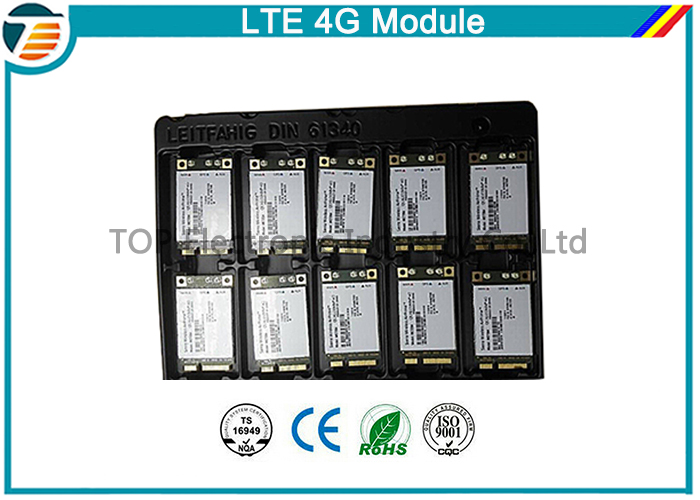

Mini PCIE Interface 4G LTE Module MC7354 Cellular Modem Module
LTE-FDD,HSPA+,GSM/GPRS/EDGE,GSM/GPRS/EDGE,CDMA
(B1,B2,B4,B8,B13,B17,B25,BC0,BC1,BC10)
FOR North America
The Sierra Wireless MC7354 PCI Express Mini Card is a compact,
lightweight, wireless LTE-, UMTS-, and CDMA-based modem.
The MC7354 provides LTE, DC-HSPA+, HSPA+, HSDPA, HSUPA,
WCDMA, GSM, GPRS, EDGE, CDMA, and GNSS connectivity for
networking, and M2M applications over several radio frequency
bands. The device also supports 2G / 3G roaming, subject to network
operator provisioning.
The device is designed to be network operator-certified. Contact
Sierra Wireless for details.
Supported RF bands
The modem, based on Qualcomm's MDM9615 baseband processor,
supports data operation on LTE, DC-HSPA+, HSPA+, EDGE, GPRS,
GSM, and CDMA networks.
features
1. Mini-PCIE interface
2. FDD LTE BAND2,4,5,13,17,25
3. WCDAM/GSM support 800M/850M/900M/1900M/2100M
CDMA 1X/EVDO support 800M/1900M
4. Operation temperature: -30°C to +70°C
Storage temperature: -40°C to +85°C
5. USB 2.0 High speed interface
6. CAT3 D/L 100M bps/50M bps U/L
7.Verizon,AT&T,Sprint approvals
Specification:
| Specifications | | |
| | MC7355 | MC7354 |
| AIR INTERFACE | LTE,HSPA+,GSM/GPRS/EDGE, EV-DO Rev A, 1xRTT | LTE,HSPA+,GSM/GPRS/EDGE, EV-DO Rev A, 1xRTT |
| DATA SPEED | | |
| Peak Download Rate | 100 Mbps | 100 Mbps |
| Peak Upload Rate | 50 Mbps | 50 Mbps |
| FREQUENCY BANDS | | |
| LTE | 1900(B2), AWS(B4) 850(B5), 700 (B13), 700(B17), 1900(B25) | 1900(B2), AWS(B4) 850(B5), 700 (B13), 700(B17), 1900(B25) |
| WCDMA | 2100(B1), 1900(B2),AWS(B4), 850(B5), 900(B8) | 2100(B1), 1900(B2), AWS(B4), 850(B5), 900(B8) |
| CDMA 1xRTT/EV-DO Rev A | 800(BC0), 1900(BC1), 1700(BC10) | 800(BC0), 1900(BC1), 1700(BC10) |
| GSM/GPRS/EDGE | Quad-Band | Quad-Band |
| APPROVALS | | |
| Regulatory | FCC, IC, PTCRB, NCC | FCC, PTCRB, NCC |
| Carrier | AT&T, Sprint, Verizon | Planned: AT&T, Verizon, Sprint |
| CPU PERFORMANCES | | |
| IO voltage | 1.8V | 1.8V |
| AUDIO | | |
| Analog audio | | |
| Digital audio | PCM/I2S | PCM/I2S |
| Codec | | |
| Echo cancellation & noise reduction | Yes | Yes |
| DTMF | Yes | Yes |
Application:
MC7354 is Ideal for industrial M2M and mobile computing solutions, (including net book, notebook and desktop computer ) AirPrime® MC embedded modules deliver high speed connectivity, with a wide selection of advanced air interfaces, including LTE frequencies.

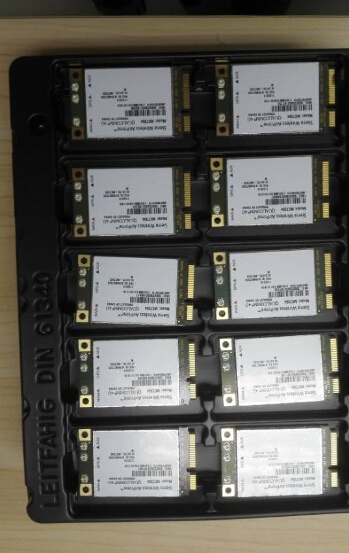

Packing:
